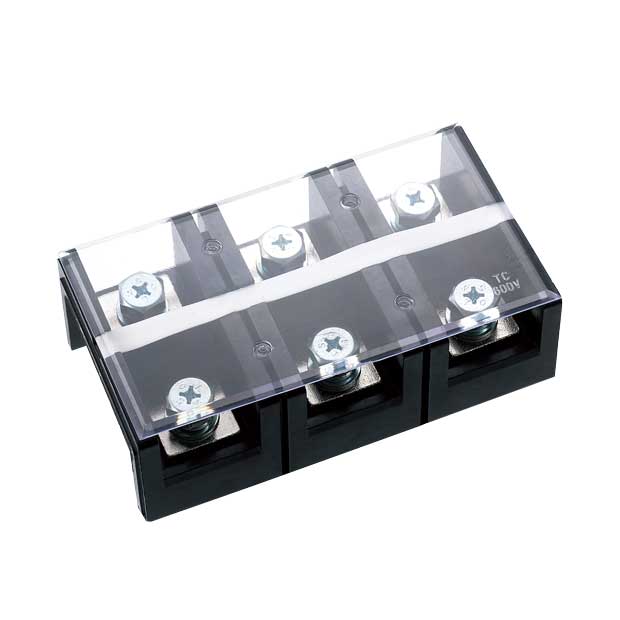

TC系列接线端子

  • TC-60A3P  TC-100A3P  TC-150A3P  TC-200A3P  TC-300A3P  TC-400A3P  TC-600A3P
  • TC-60A3P  TC-100A3P  TC-150A3P  TC-200A3P  TC-300A3P  TC-400A3P  TC-600A3P
  • TC-60A3P  TC-100A3P  TC-150A3P  TC-200A3P  TC-300A3P  TC-400A3P  TC-600A3P
  • TC-60A3P  TC-100A3P  TC-150A3P  TC-200A3P  TC-300A3P  TC-400A3P  TC-600A3P
  • TC-60A3P  TC-100A3P  TC-150A3P  TC-200A3P  TC-300A3P  TC-400A3P  TC-600A3P
  • TC-60A3P  TC-100A3P  TC-150A3P  TC-200A3P  TC-300A3P  TC-400A3P  TC-600A3P
  • TC-60A3P  TC-100A3P  TC-150A3P  TC-200A3P  TC-300A3P  TC-400A3P  TC-600A3P
  • TC-60A3P  TC-100A3P  TC-150A3P  TC-200A3P  TC-300A3P  TC-400A3P  TC-600A3P
TC-60A3P  TC-100A3P  TC-150A3P  TC-200A3P  TC-300A3P  TC-400A3P  TC-600A3PTC-60A3P  TC-100A3P  TC-150A3P  TC-200A3P  TC-300A3P  TC-400A3P  TC-600A3PTC-60A3P  TC-100A3P  TC-150A3P  TC-200A3P  TC-300A3P  TC-400A3P  TC-600A3PTC-60A3P  TC-100A3P  TC-150A3P  TC-200A3P  TC-300A3P  TC-400A3P  TC-600A3PTC-60A3P  TC-100A3P  TC-150A3P  TC-200A3P  TC-300A3P  TC-400A3P  TC-600A3PTC-60A3P  TC-100A3P  TC-150A3P  TC-200A3P  TC-300A3P  TC-400A3P  TC-600A3PTC-60A3P  TC-100A3P  TC-150A3P  TC-200A3P  TC-300A3P  TC-400A3P  TC-600A3PTC-60A3P  TC-100A3P  TC-150A3P  TC-200A3P  TC-300A3P  TC-400A3P  TC-600A3P

TC-60A3P TC-100A3P TC-150A3P TC-200A3P TC-300A3P TC-400A3P TC-600A3P

  • 产品描述:TC-60A3P TC-100A3P TC-150A3P TC-200A3P TC-300A3P TC-400A3P TC-600A3P

采用热固性塑料,大电流安全系数更可靠,结构件采用板式螺钉压接技术,额定交浪电压690V,连接导线的截面10-300,是目前最大截面端子,按排列又分为3P、4P平板螺钉安装,配用OT、U T端头使用,更加牢固可靠,可作各类电气装置中的大电流接线之用。


产品名称 型号规格 外型尺寸 技术数据
宽度/厚度/高度(mm) 螺钉直径(mm) 剥线长度(mm) 额定电压(V) 额定电流(A) 额定截面(mm2)
大电流端子 TC-60A 2P 59/42.8/32.5(2.3) M6 14 600 60 16
TC-60A 3P 86.4/42.8/32.5(2.3) M6 14 600 60 16
TC-60A 4P 115.2/42.8/32.5(2.3) M6 14 600 60 16
TC-60A 5P 143/42.8/32.5(2.3) M6 14 600 60 16
TC-100A 2P 70/54.5/38.5(2.5) M6 22 600 100 25
TC-100A 3P 103.8/54/38.5(2.5) M6 22 600 100 25
TC-100A 4P 138.4/54.5/38.5(2.5) M6 22 600 100 25
TC-100A 5P 173/54.5/38.5(2.5) M6 22 600 100 25
TC-150A 3P 115/65.5/41.5(2.5) M8 60 600 150 60
TC-150A 4P 154.8/65.5/41.5(2.5) M8 60 600 150 60
TC-150A 5P 193/65.5/41.5(2.5) M8 60 600 150 60
TC-200A 3P 133.5/72/47(2.5) M8 80 600 200 100
TC-200A 4P 178/72/47(2.5) M8 80 600 200 100
TC-200A 5P 224/72/47(2.5) M8 80 600 200 100
TC-300A 3P 165/90/53(2.5) M10 150 600 300 150
TC-300A 4P 220/90/53(2.5) M10 150 600 300 150
TC-400A 3P 165/90/53(2.5) M10 150 600 300 150
TC-400A 4P 220/90/53(2.5) M10 150 600 300 150
TC-600A 3P 207/100.5/73(3) M12 200 600 600 300
TC-600A 4P 274/100.5/73(3) M12 200 600 600 300
